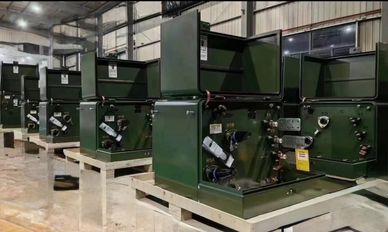

Single Phase Pad-Mount Transformer

• Equipped with a clamshell cabinet for convenient  access for connections.
• High reliability and safety
• Long service life
• Low loss
• Low noise
• High efficiency, DOE 2016 Standard
• Low temperature rise
• UL Listed

• Rated Capacity: 15KVA  ~250 KVA
• Primary Voltage:   34.5kV-19.92kV, 24.94kV-14.4kV, 13.8kV-7.957kV, 13.2kV-7.62kV, 12.47kV-7.2kV or others
• Secondary Voltage: 120-240V, 240-480V, 347/600V or others
• H.V. Tap Range: 2x2.5%
• BIL: 30V~150V
• 60Hz
• 3.0/4.0mm thickness tank and cover
• Oil-filled, (Non-PCB mineral oil or FR3 )
• Cooling method: ONAN

Optional Features

• High-voltage no load tap changer
• Dual high-voltage ratings (no taps)
• Stainless Steel Enclosure
• Multiple fusing options
• Under oil arrester

Etc.
