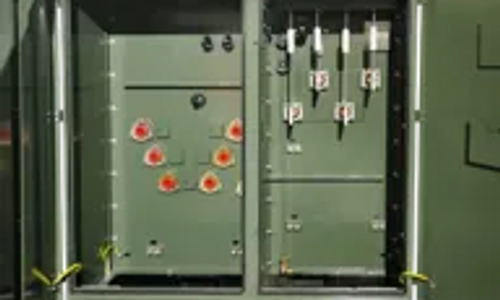

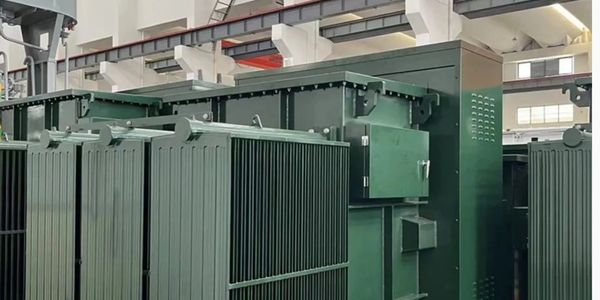

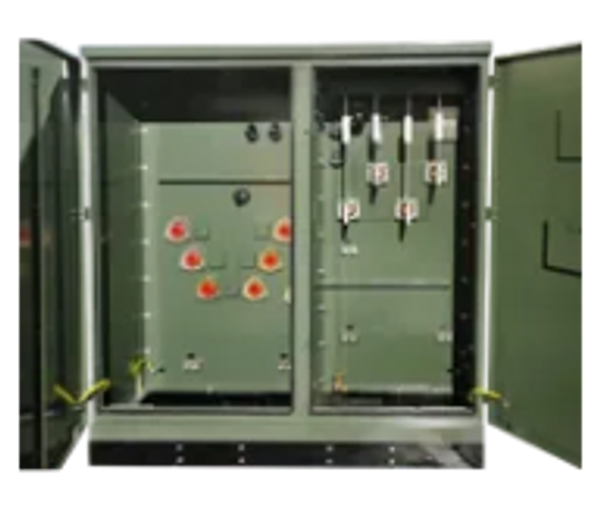

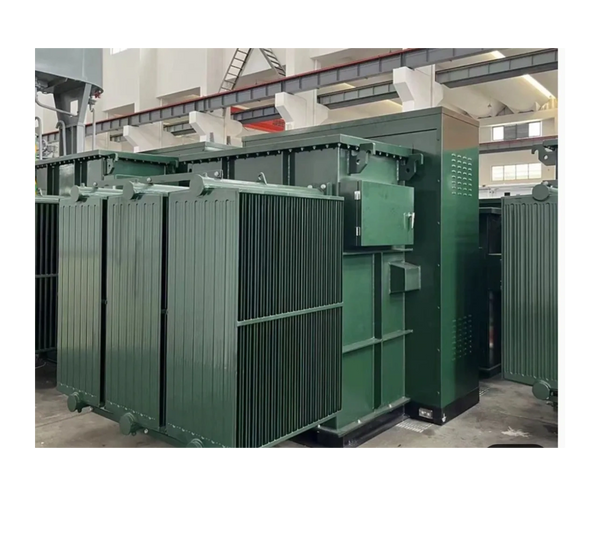

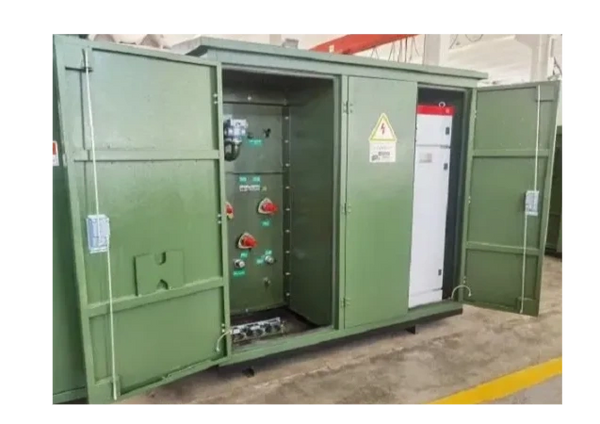

Three Phase Pad-Mount Oil Filled Transformer

 Technical Specifications

• Base Rating: 45 kVA to 12,000 kVA

• Primary Voltage Range: 2.4 kV to 46 kV

• Secondary Voltage Range: 208Y/120 V to 24,940 V


These ratings support a wide range of utility, commercial, and industrial applications, offering flexible configurations to meet diverse system requirements

Certified for Performance, Safety, and Efficiency

• UL Safety & Environmental Standards
  All equipment is designed and manufactured in compliance with applicable UL standards, ensuring the highest levels of safety and environmental responsibility.

• DOE 2016 Efficiency Compliance
  Our transformers meet or exceed the U.S. Department of Energy (DOE) 2016 efficiency standards, delivering optimal energy performance and cost savings over the product lifecycle.

• Proudly Made in Canada
  Manufactured in Canada with strict adherence to North American quality and regulatory standards, offering reliable sourcing and reduced tariff impact.

Step-Up and Step-Down Transformer Solutions
We provide expertly engineered transformer systems designed to either step up or step down primary voltage levels, tailored to the unique demands of your application. Our solutions are widely implemented across commercial and industrial (C&I) facilities, renewable energy installations, and mission-critical environments such as data centers and utility substations.

• Step-Up Transformers: Ideal for applications where low-voltage power (e.g., 480V or 600V) must be increased to medium or high voltages (e.g., 13.8kV or 34.5kV) for transmission or grid interconnection—common in solar and wind farms.

• Step-Down Transformers: Used to reduce high incoming utility voltage (e.g., 34.5kV) to serviceable voltages like 480Y/277V for safe and reliable distribution within buildings, industrial plants, or IT infrastructure.

Our Pre-Sales Support Services Include:

• Needs Assessment & Design Consultation
  Assisting you in identifying and designing the most suitable transformer solution tailored to your specific operational requirements.

• Specification & Drawing Development
  Collaborating closely to develop detailed specifications and engineering drawings, ensuring a precise fit for your application.

• Manufacturing Oversight
  Supervising the manufacturing and fabrication process to maintain quality and adherence to project standards.

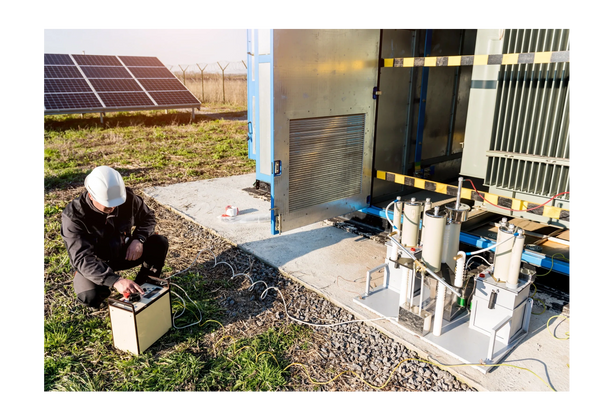

• Testing & Quality Assurance
  Supporting Factory Acceptance Testing (FAT), routine testing, and electrical testing upon receipt to ensure performance and compliance.
